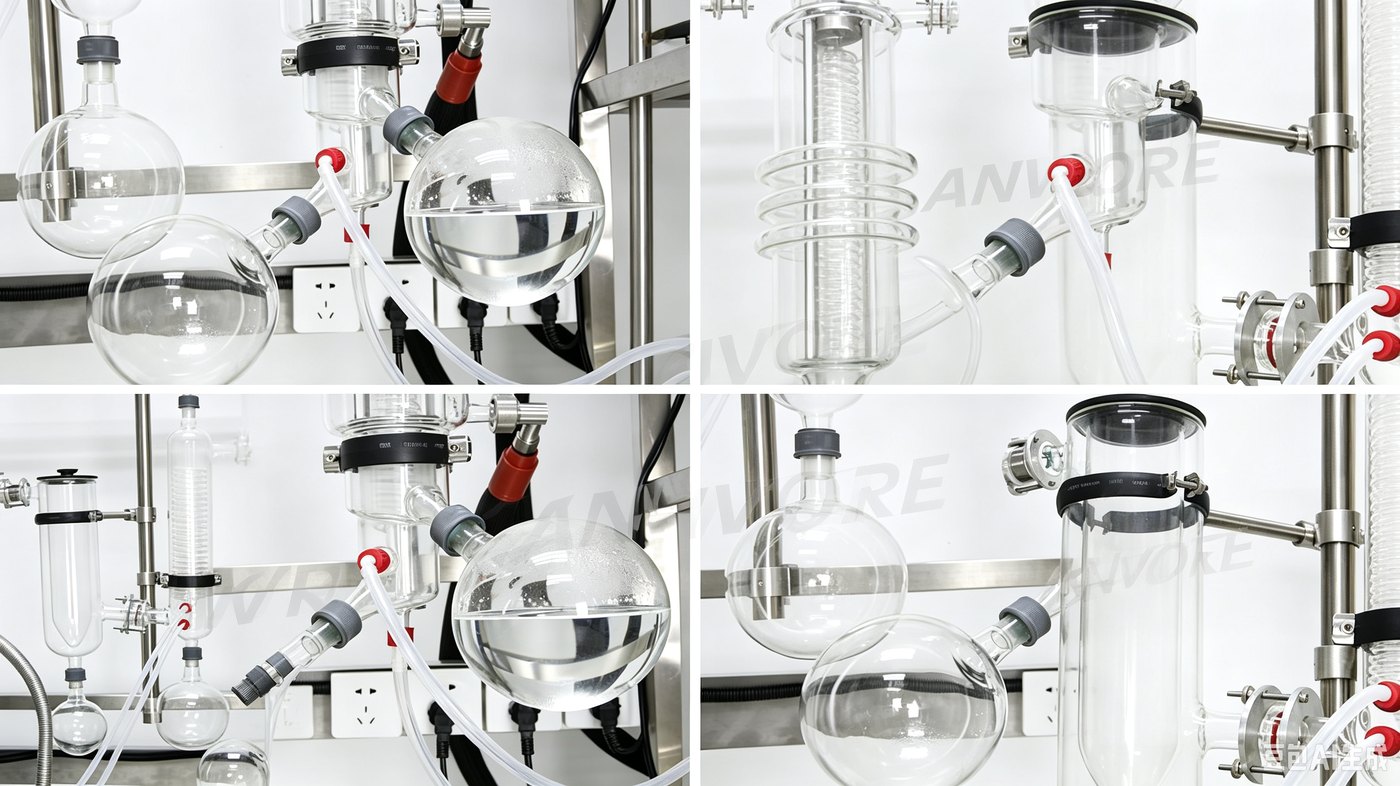

The AVF60 is a short-path molecular distillation apparatus built around a Ø 60 mm borosilicate glass evaporator body with 0.06 m² of evaporation area, with larger 500 mL receivers and a stronger 120 W wiper motor for higher throughput.

Molecular distillation is a special liquid–liquid separation technology: under high vacuum (below 10 Pa), the mean free path of vapor molecules exceeds the distance between the evaporation and condensation surfaces, so components are separated by their differences in evaporation rate — not by boiling. Feed (0.1–2.0 L/h) is spread by PTFE / 304 SS wipers (up to 450 rpm) into a turbulent film thinner than 0.5 mm on the heated wall (RT–200 °C); light components evaporate and condense on the internal condenser, while heavy components flow to a separate receiver. A built-in cold trap protects the vacuum pump, and an external condenser is available as an option.

Compared with conventional short-path stills, the AV-F60 offers shorter residence time, lower processing temperature and continuous operation without breaking vacuum — a true plug-and-play, turn-key solution for lab and pilot purification of high-boiling, heat-sensitive and easily oxidized materials.

Key Advantages

Gentle Low-Temperature Separation — Operates far below the boiling point with a short residence time — ideal for high-boiling, heat-sensitive and easily oxidized materials.
High Vacuum, Below 10 Pa — Ultimate vacuum below 10 Pa (no-load) protects materials from oxidation and lowers the operating temperature.
Thin Film, High Heat Transfer — Wipers spread the liquid into a film < 0.5 mm thick, giving high evaporation efficiency with no bubbling or foaming.
120 W Wiper Motor, Larger Receivers — Stronger agitation and 500 mL light / heavy receivers (customizable) support longer unattended runs at up to 2.0 L/h.
Effective Degassing & Deodorizing — Efficiently strips organic solvents and odors — highly effective for desolvating solvent-extracted liquids.
Multi-Stage Selective Separation — Selectively evaporates target products and removes impurities; multi-stage operation separates 2+ components simultaneously.
Corrosion-Resistant Wetted Parts — Wiper system of PTFE + 304 stainless steel; fluoroelastomer (optionally PTFE) gaskets throughout for excellent sealing and chemical resistance.
Cold Trap Standard, Options Galore — Built-in cold trap shields the vacuum pump; optional external condenser, preheatable feed vessel and custom receiver sizes.
Pure Physical Separation — Non-toxic, harmless, pollution-free and residue-free — yields clean, safe products with no solvent carry-over.

Product Features

Feature	Benefit
Short-path molecular distillation at < 10 Pa	Molecule mean free path exceeds evaporation–condensation gap for true molecular separation
PTFE + 304 SS wiper system, ≤ 450 rpm, 120 W	Turbulent film < 0.5 mm; high heat transfer, no hot spots
Heating jacket RT – 200 °C	Wide temperature window matched to thermally sensitive products
500 mL feed vessel (customizable), optional preheating	Adjustable feed rate 0.1–2.0 L/h and preheat temperature
Internal condenser 0.1 m² + standard cold trap	Efficient light-fraction capture and vacuum pump protection
Separate 500 mL light / heavy receivers (customizable)	Clean split of distillate and residue; larger batches per run
Continuous operation without breaking vacuum	Uninterrupted processing for higher productivity
All-glass borosilicate construction	Full process visibility; corrosion resistant and easy to clean
Fluoroelastomer / optional PTFE sealing	Excellent airtightness; PTFE option for aggressive media
Bench / pilot / custom evaporation areas	Seamless scale-up path from feasibility study to pilot line

Technical Specifications

Additional evaporation areas for pilot and production scale available on request — contact sales for tailored models.

Parameter	AV-F60
Evaporator inner diameter	60 mm
Evaporation area	0.06 m²
Condensation area	0.1 m²
Feed vessel volume	500 mL (customizable)
Throughput	0.1 – 2.0 L/h
Wiper motor power	120 W
Max rotation speed	450 rpm
Light fraction receiver	500 mL (customizable)
Heavy fraction receiver	500 mL (customizable)
Cold trap	Standard
External condenser	Optional
Cooling device	Standard
Operating vacuum	< 10 Pa (no-load ultimate vacuum)
Heating temperature	Room temperature – 200 °C
Power supply	Voltage customizable (110V / 220V / 230V / 380V, 50/60Hz)

Applications

Fine chemicals — — purification of aromatic (essential) oils, polymer intermediates, lanolin extraction
Pharmaceuticals — — extraction of natural vitamins A & E, production of amino acid and glucose derivatives
Food industry — — refined fish oil, fatty acid deacidification, high-carbon alcohol purification, mixed oil fractionation
Cannabinoids & botanicals — — CBD / hemp oil and herbal extract purification and decolorization
Petrochemicals — — heavy fraction upgrading and specialty base oil refining
Daily chemicals & environmental protection — — fragrance purification, solvent recovery, waste stream concentration
