Gentle Molecular Distillation for Flavor-Grade Aroma Ingredients
How ANVORE's oxygen-free, short-path separation platform refines crude natural vanillin into bright white, high-purity crystals with the full, clean aroma the flavor industry demands — in seconds of thermal exposure, with no solvent carry-over and no charring.
| 0.05-1 Pa | Seconds | 110-150 °C | 0 solvent |
|---|---|---|---|
| Molecular still operating pressure | Thermal residence time | Evaporation window, below charring point | Purely physical separation |
1. Application Overview
Vanillin is the signature aroma molecule of the natural flavor industry, valued in fine fragrance, confectionery, bakery, dairy and beverage applications. Whether extracted from cured vanilla pods or produced by natural bio-conversion, crude vanillin arrives as a thermally fragile aromatic aldehyde carrying colored polymers, phenolic by-products, vanillic acid, residual water and extraction solvents — impurities that dull both its color and its aroma.
Vanillin melts at only 81-83 °C and discolors, oxidizes and polymerizes when overheated. Conventional recrystallization and long-path distillation demand high temperatures or large solvent volumes, sacrificing yield and sensory quality. ANVORE replaces these with a gentle physical route: thin-film evaporation strips the light burden first, then short-path molecular distillation refines the vanillin fraction under deep vacuum within seconds.
2. The ANVORE Solution
ANVORE sequences two complementary wiped-film technologies so each operates in its optimum window, with the whole train running closed and oxygen-free:
1. Thin-film evaporation stage —the crude feed is spread into a thin falling film; residual moisture, extraction solvent and light-end off-note volatiles are stripped overhead at moderate vacuum, de-burdening the refining stage.
2. Short-path molecular distillation stage —at 0.05-1 Pa vanillin vaporizes from the wiped film at survivable temperature and crosses the mean-free-path distance to the built-in internal condenser; colored polymers, tars and heavy phenolics never evaporate and are drained continuously.
3. Hermetic, oxygen-free operation —fully closed equipment with nitrogen blanket option — the aromatic aldehyde never contacts air, protecting color, aroma and oxidative stability.
4. Seconds of thermal exposure —high-speed wiper blades continuously renew the liquid film; the melt spends seconds on the hot surface instead of the long hold-up of batch distillation, with tight, hotspot-free temperature control.
3. Complete Purification Process Flow

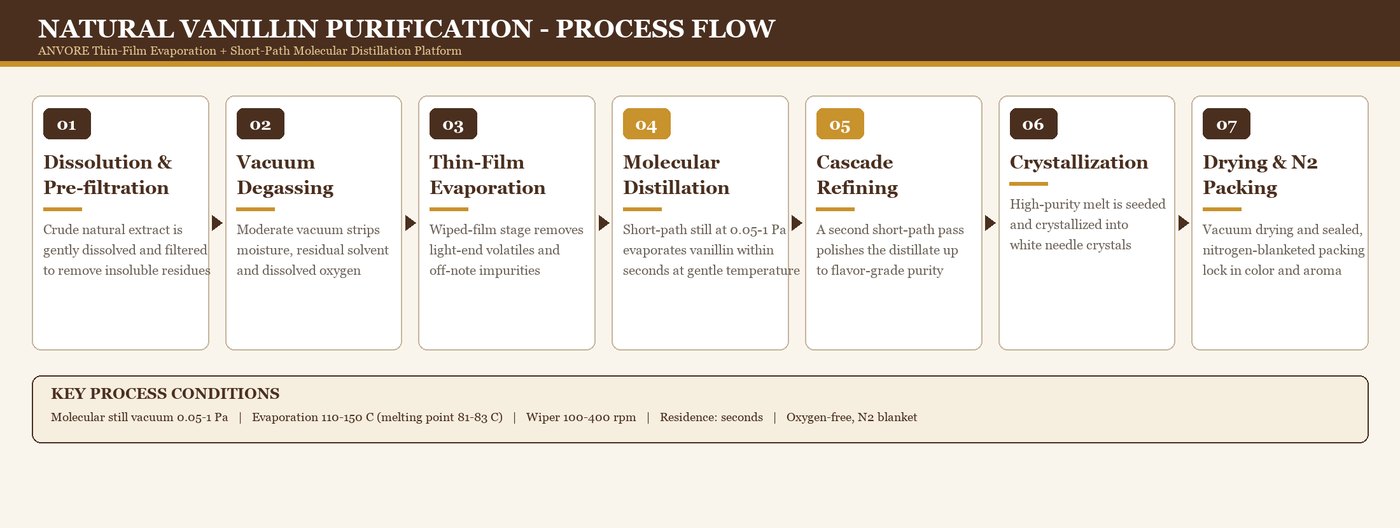

The purification campaign runs continuously; each stage below maps to the flow diagram in Figure 4:
Step 1 · Dissolution & Pre-filtration —Crude natural vanillin extract is gently dissolved and filtered to remove insoluble residues and protect downstream equipment.
Step 2 · Vacuum Degassing —Under moderate vacuum the feed is degassed to strip moisture, residual extraction solvent and dissolved oxygen — the first act of product protection.
Step 3 · Thin-Film Evaporation —The wiped-film evaporator removes light-end volatiles and off-note impurities overhead; the vanillin-rich stream continues forward.
Step 4 · Molecular Distillation —In the short-path still at 0.05-1 Pa, vanillin vaporizes from the wiped film within seconds and condenses instantly on the internal condenser; colored polymers, tars and heavy phenolics remain in the residue.
Step 5 · Cascade Refining —A second short-path pass polishes the distillate, stepping purity and aroma cleanliness up to flavor-grade specification.
Step 6 · Crystallization —The high-purity vanillin melt is seeded and crystallized into bright white needle crystals.
Step 7 · Drying & Nitrogen Packing —Crystals are dried under vacuum and sealed in nitrogen-blanketed packaging to lock in color and aroma.
4. Key Parameters & Process Advantages
| Parameter | Typical range / description |
|---|---|
| Feed | Crude natural vanillin extract, melt or concentrate |
| Molecular still pressure | 0.05-1 Pa, high-vacuum train |
| Evaporation temperature | 110-150 °C, tuned just above the 81-83 °C melting point |
| Wiper speed | 100-400 rpm, uniform thin film |
| Residence time | Seconds on the heated surface |
| Product handling | Sealed receivers, nitrogen blanket, light-protected packing |
Compared with conventional recrystallization and long-path distillation, the ANVORE route consistently delivers:
- Brighter, purer crystals — colored polymers and oxidation products are excluded from the distillate by physics, not by extra chemical treatment.Cleaner, fuller aroma — light-end off-notes are stripped while the delicate vanillin character is preserved by seconds-long, low-temperature exposure.Higher yield, less solvent — direct melt refining minimizes recrystallization losses and eliminates solvent-heavy purification loops.Solvent-free and scalable — purely physical continuous operation, from bench verification to full production lines.
5. Conclusion & One-Stop Support
Natural vanillin purification is a race against heat, oxygen and time. The ANVORE two-stage platform wins that race by design: thin-film evaporation removes the light burden, and short-path molecular distillation refines the vanillin fraction at 0.05-1 Pa within seconds — preserving the white color and clean, full aroma that conventional routes surrender.

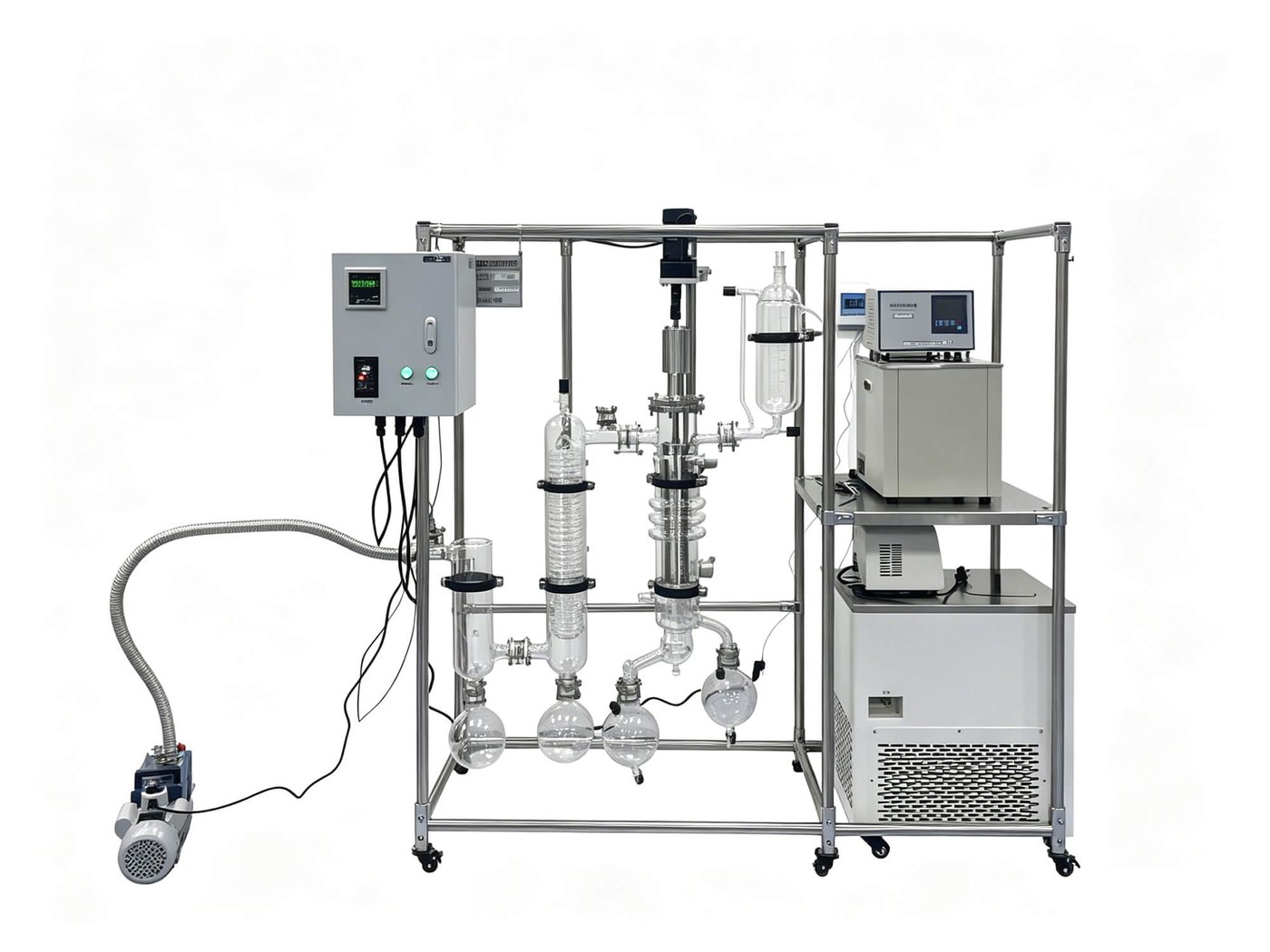

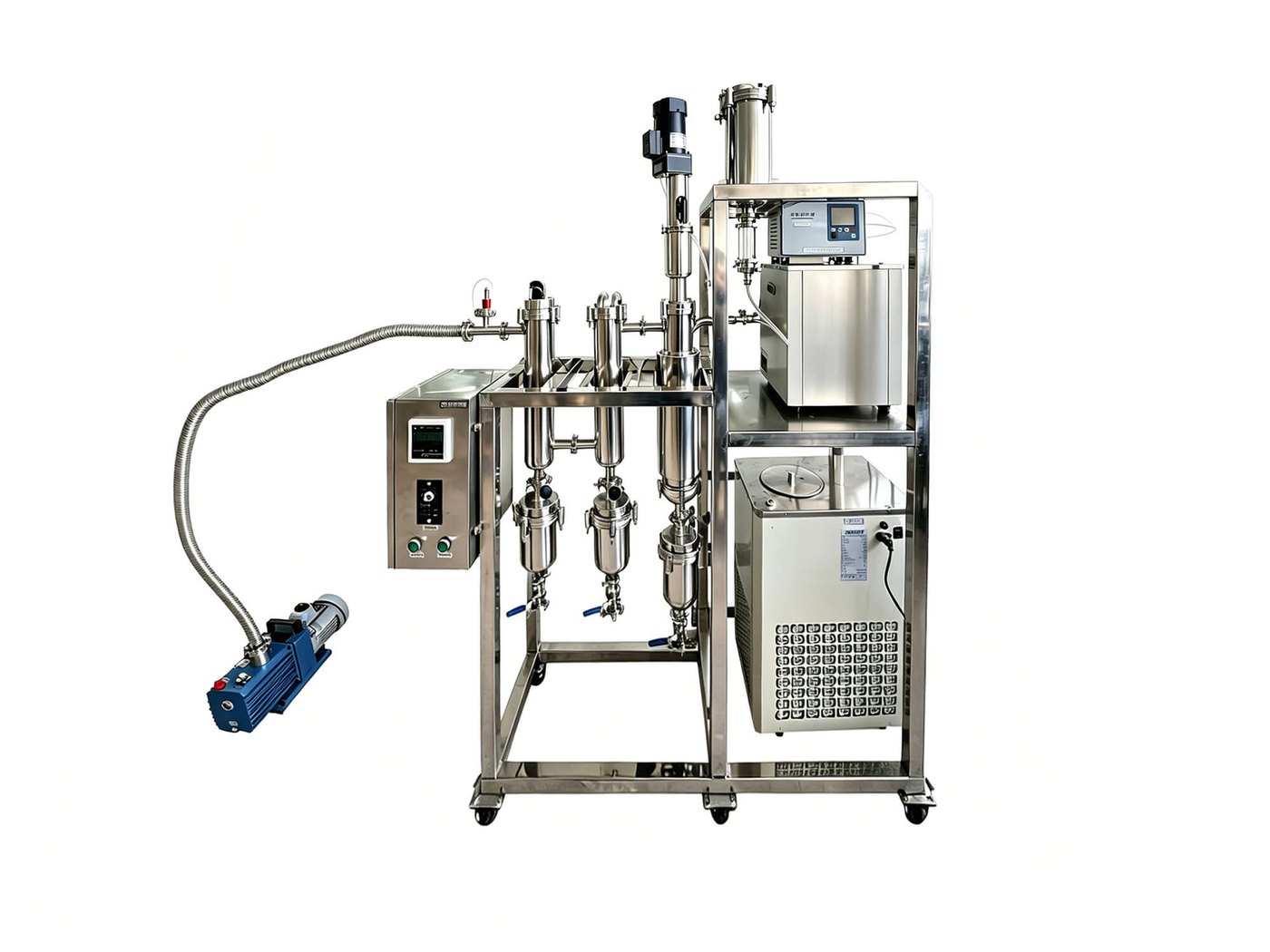

ANVORE provides free bench testing with your crude vanillin, customized process design, complete equipment supply and on-site commissioning — scaling smoothly from laboratory glass units to stainless-steel production systems.
Send us your crude vanillin sample for free verification. Contact ANVORE for tailored process design and equipment selection.
