Anvore High Throughput Fully Enclosed Water Bath Sample Concentrator

Anvore Water Bath Sample Concentrator

The Anvore AVDC36S high throughput fully enclosed water bath sample concentrator is engineered for high volume sample preparation laboratories. Optimized for heavybatch testing workloads, this 36-position sample concentrator integrates dual lighted transparent viewing windows and high tightness sealed chamber. built in multi group experimental data storage enables operators to manage largebatch concentration workflows safely and effortlessly. It greatly improves lab efficiency for labs processing dozens of samples per batch compared with 12-position and 24-position bench top nitrogen concentration instruments.

Anvore Water Bath Sample Concentrator Advantages

• Highthroughput 36-sample batch processing with threechannel grouped gas control: Unique one control three gascircuit grouping design, suitable for high volume routine lab testing. Balanced nitrogen pressure across all 36 ports while reducing overall gas consumption for largebatch concentration tasks.
• Complete enclosed solventvapor containment system: Dualsealed door window protection plus internal circulating exhaust fan. Harmful volatile organic fumes are fully captured inside the cabinet; instrument can run independently without occupying precious fume hood workspace.
• Illuminated dual side visual monitoring: Frontandtop dual transparent observation windows with internal chamber lighting. Operators can inspect liquid level changes of dozens of samples simultaneously without opening the sealed chamber door.
• Intelligent 50-segment programmable temperature workflow: 7-inch touchscreen interface provides 5 operation modes and multi segment temperature programming. Historical experimental parameters can be stored and quickly recalled for repeatable batchsample preparation.
• Multilayer water bath safety safeguards: Automatic water replenishment, anti dry burn protection and over temperature alarm prevent equipment damage under long duration heavyload continuousrun conditions.
• Wide compatibility interchangeable sample tray: Removable sample rack accepts sample tubes 10-30 mm diameter, flexible for multispecimen container requirements in high throughput labs.

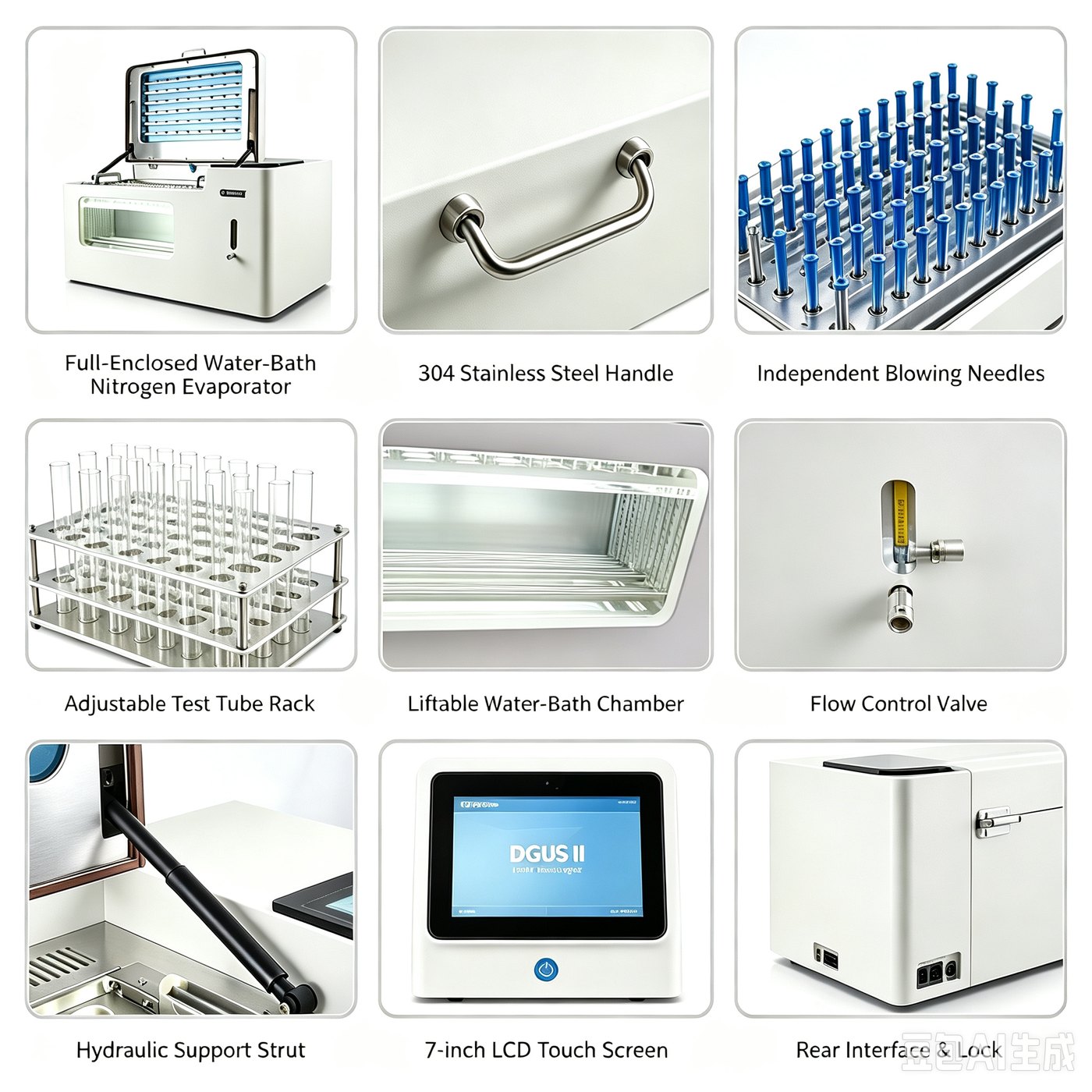

Main Features

• 7-inch large LCD touchscreen HMI, supports up to 36 parallel sample positions
• 5 selectable operation modes, 50-segment programmable temperature profiles
• Dual side lighted observation windows for fullvisibility monitoring of batch samples
• Auto water refill function with anti dry burn safety protection
• Automatic pressure regulating unit delivers stable pressure for grouped gas circuits
• Optimized one control three throttle solenoid valve groups for gas tightness and nitrogen saving under high throughput operation
• Onboard storage for multiple sets of running data for experimental traceability
• Dualsealed door window structure + built in circulating exhaust fan, zero volatilevapor leakage
• Removable interchangeable sample tray; hydraulic support strut for easy chamberdoor opening

Technical Specifications

Applications

Ideal for high volume laboratories including food safety inspection, multi batch pharmaceutical analysis, pesticide residue screening, large scale environmental monitoring, forensic sample pretreatment, preparing batches of samples ahead of GC, HPLC and LCMS instrumental analysis.
