Lab Nitrogen Generator
The ANVORE PSA Nitrogen Generator produces high purity nitrogen on-site via pressure swing adsorption technology, eliminating the cost and safety.
High Purity Nitrogen Generator for Laboratory
The ANVORE PSA Nitrogen Generator produces high purity nitrogen on-site via pressure swing adsorption technology, eliminating the cost and safety risks of high pressure nitrogen cylinders or liquid nitrogen tanks. This compact stand-alone unit is widely adopted in laboratories, food packaging, pharmaceutical production, chemical analysis, laser cutting and electronic assembly industries. It continuously delivers stable dry nitrogen gas, supporting 24 hour non-stop operation. Plug-and-run design lowers installation threshold, ideal for overseas small-to-medium factories and research labs seeking reliable on-demand nitrogen supply.

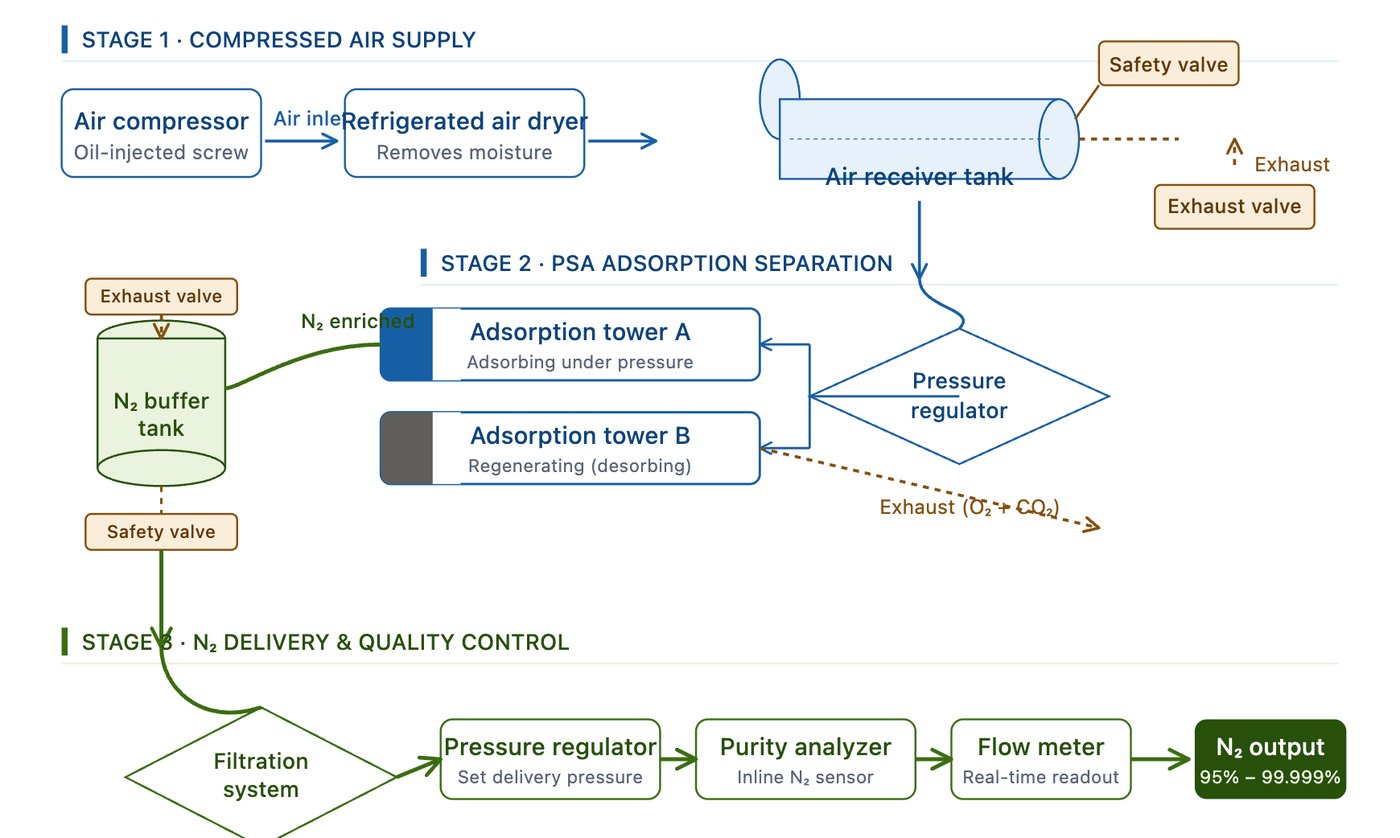

How a PSA Nitrogen Generator Works
PSA Nitrogen Generator Advantages
- On-site Gas Generation, Low Operating Cost No regular gas cylinder replacement or liquid nitrogen procurement. Generate nitrogen whenever you need it, greatly cutting long-term gas procurement expense for end-users.
- High Purity & Flow Customization High nitrogen purity up to 99.999%. Multiple flow rate options match different application scenarios, from lab analytical instruments to industrial processing lines.
- Stable & Reliable 24/7 Continuous Operation High quality carbon molecular sieve ensures long service life. Intelligent pressure balance control reduces component wear, supporting non-stop day-to-day running.
- Intelligent Automatic Control System Touchscreen operation, real time monitoring of pressure, purity and running status. Automatic fault alarm and protection function, minimal manual intervention required.
- Compact Floor-saving Structure Integrated cabinet style layout, small footprint. Does not require complex infrastructure transformation; easy to place inside workshops or laboratories.
PSA Nitrogen Generator Features
- Adopts imported high performance carbon molecular sieve, excellent adsorption efficiency and long service cycle
- Advanced pressure swing adsorption separation process, stable nitrogen output quality
- Built in multi stage air pretreatment filter system, effectively removes water, oil and impurities from source compressed air
- Human-machine touch interface, visualize running parameters, easy parameter setting and status checking
- Complete safety protection: over pressure protection, fault self diagnosis, automatic alarm reminder
- Modular structure, convenient for daily maintenance and component replacement
- Multiple configuration options: can be matched with external buffer tank, drying unit according to customer requirements
Item Specification
| Item | Specification |
|---|---|
| Model | AV40LB |
| Nitrogen Purity / Flow | 99% ≥40 L/min; 99.9% ≥20 L/min; 99.99% ≥15 L/min; 99.999% ≥10 L/min |
| Output Flow | 0–40 L/min |
| Oxygen Content | ≤0.1% |
| Output Pressure | 0–0.6 MPa (factory preset: 0.5 MPa) |
| Power Supply | Standard 220V±10%, 50Hz±5%; customizable 110–240V, 50/60Hz for global markets |
| Power Consumption | 3200 W |
| Ambient Temperature | 10–40 ℃ |
| Relative Humidity | ≤85%, no heavy dust & corrosive gas |
| Overall Dimension (D×W×H) | 1000 × 760 × 1350 mm |
| Net Weight | 180 kg |
Working Ambient Condition Ambient temperature:1040 ℃
- Relative humidity: ≤85% No heavy dust & corrosive gas
- Overall Dimension(D×W×H)1000 × 760 × 1350 mm
- Net Weight 180 kg
PSA Nitrogen Generator Applications
ANVORE PSA nitrogen generators serve multiple global industries: food MAP packaging, pharmaceutical synthesis & packaging, GC gas supply for laboratory, laser cutting & welding, SMT electronic reflow welding, chemical inerting protection, heat treatment industry.
More PSA Nitrogen Generators
AV100LBAnvore on-site PSA Nitrogen Generation System ·
The Anvore AV-100LB PSA Nitrogen Generator is a complete, skid-mounted nitrogen generation system built on Pressure Swing Adsorption (PSA).
View Product →
V-PSA-CAV-PSA-C Industrial PSA Nitrogen Generator
The AV-PSA-C is a large-scale dual-tower Pressure Swing Adsorption (PSA) nitrogen generator engineered for continuous industrial duty. Using.
View Product →PSA Nitrogen Generators

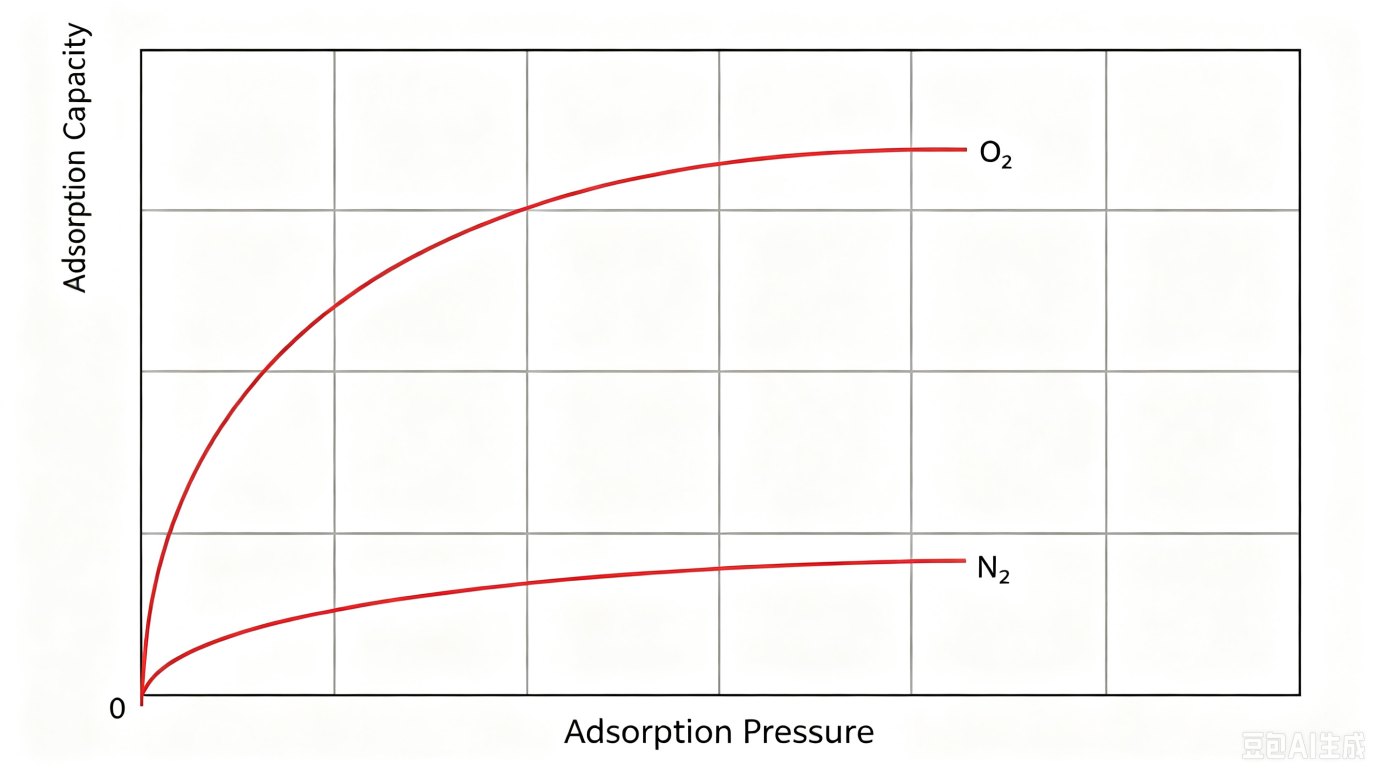

Pressure swing adsorption separates nitrogen from air by exploiting the fact that a carbon molecular sieve adsorbs oxygen faster than it adsorbs nitrogen. Compressed air is passed
