Stainless Steel Molecular Distillation Apparatus

The AV-F60S is a fully automatic stainless steel molecular distillation apparatus. The evaporator body, feed vessel and receivers are all built from SS 304/316L, sealed with premium PTFE for high vacuum integrity and long service life.

Molecular distillation is the safest and most efficient separation method for thermally unstable molecules and low-volatility, high-boiling compounds. Under high vacuum (below 10 Pa), vapor molecules travel directly from the heated film to the internal condenser — separation is complete in seconds, at temperatures far below the boiling point.

With automatic feeding, automatic collection and plug-and-play design, the AV-F60S runs continuously and unattended — no interruption, no vacuum break. Multiple sizes are available for bench, pilot and production duty, with full customization and complete turn-key systems engineered to order.

Stainless Steel Molecular Distillation Apparatus Features

• 304/316L Stainless Steel Body — Premium SS construction ensures stability, corrosion resistance and a long service life with lasting high throughput.
• Separation in Seconds — Short-path wiped-film system gives the shortest residence time — ideal for heat-sensitive and unstable molecules.
• High Vacuum, Low Temperature — PTFE sealing system holds vacuum below 10 Pa for efficient, low-temperature distillation.
• Fully Automatic Operation — Automatic feeding and collection with plug-and-play design — unattended, continuous distillation.
• Continuous Distillation — Runs without interruption; no need to break vacuum between batches.
• Safest Separation Method — Molecular distillation purifies unstable molecules and high-boiling, low-volatility compounds gently.
• Turn-Key Custom Systems — Complete customization available — a full set of services from a single supplier.

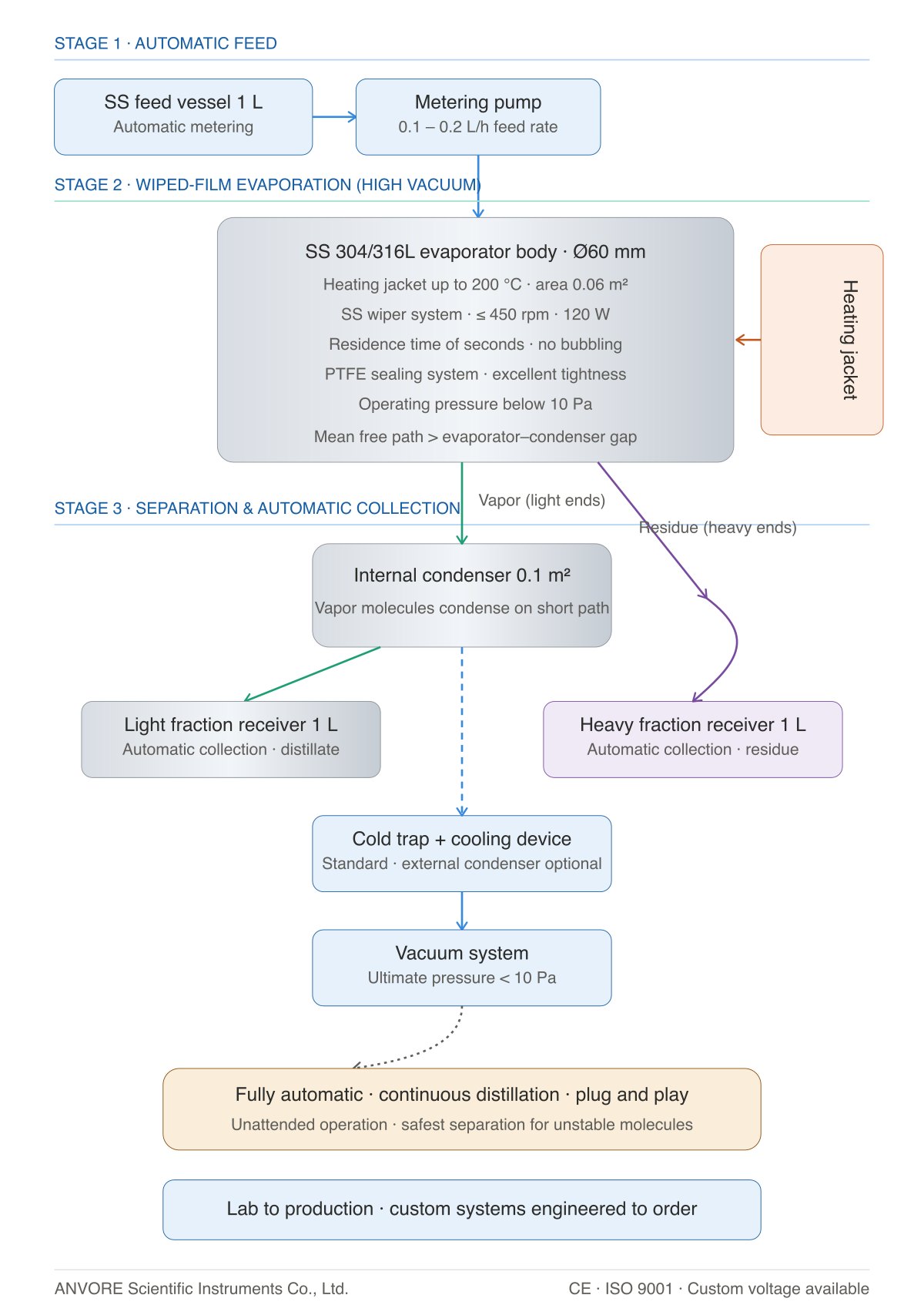

Working Principle

Feed is metered automatically (0.1–0.2 L/h) from a 1 L SS vessel onto the heated wall of the Ø 60 mm SS evaporator. Rotating SS wipers spread it into a thin film; under vacuum below 10 Pa, light molecules fly directly onto the internal condenser (mean free path > evaporator–condenser gap) while heavy molecules flow to a separate receiver — both collected automatically, with no boiling and no thermal stress.

Technical Specifications

• Larger SS evaporator sizes and complete turn-key systems available on request — contact sales for tailored models.

Applications

• Petrochemicals — — specialty oil refining and heavy fraction upgrading
• Pharmaceutical chemicals — — purification of active intermediates and heat-sensitive compounds
• Essential oils — — aromatherapy and natural oil purification
• Perfume & cosmetics — — fragrance essence purification for premium formulations
