SS Wiped Film Molecular Distillation Equipment

The AV-F150S is a large pilot-scale, fully automatic stainless steel molecular distillation apparatus. The Ø 150 mm evaporator body, 3 L feed vessel and 3 L receivers are all built from SS 304/316L and sealed with premium PTFE for high vacuum integrity and long service life.

Molecular distillation is the safest and most efficient separation method for thermally unstable molecules and low-volatility, high-boiling compounds. Under high vacuum (below 10 Pa), vapor molecules travel directly from the heated film to the internal condenser — separation completes in seconds, at temperatures far below the boiling point.

With a 0.25 m² evaporation area and 1.0 – 8.0 L/h throughput, the AV-F150S covers pilot production and small-batch manufacturing. Automatic feeding and collection enable continuous, unattended operation — plug and play, no vacuum break between batches.

Key Advantages

• 304/316L Stainless Steel Body — Premium SS construction ensures stability, corrosion resistance and a long service life with lasting high throughput.
• Pilot-Production Throughput — 0.25 m² evaporation area and 0.45 m² condensation area deliver 1.0 – 8.0 L/h — pilot batches and small-scale production.
• Separation in Seconds — Short-path wiped-film system gives the shortest residence time — ideal for heat-sensitive molecules.
• High Vacuum, Low Temperature — PTFE sealing holds vacuum below 10 Pa for efficient, low-temperature distillation up to 200 °C.
• Fully Automatic Operation — Automatic feeding and collection with plug-and-play design — unattended, continuous distillation.
• Continuous Distillation — Runs without interruption; no need to break vacuum between batches.
• Scale as You Grow — Multiple SS models from bench to production — one platform, full scale-up path.
• Turn-Key Custom Systems — Complete customization available — a full set of services from a single supplier.

Structure

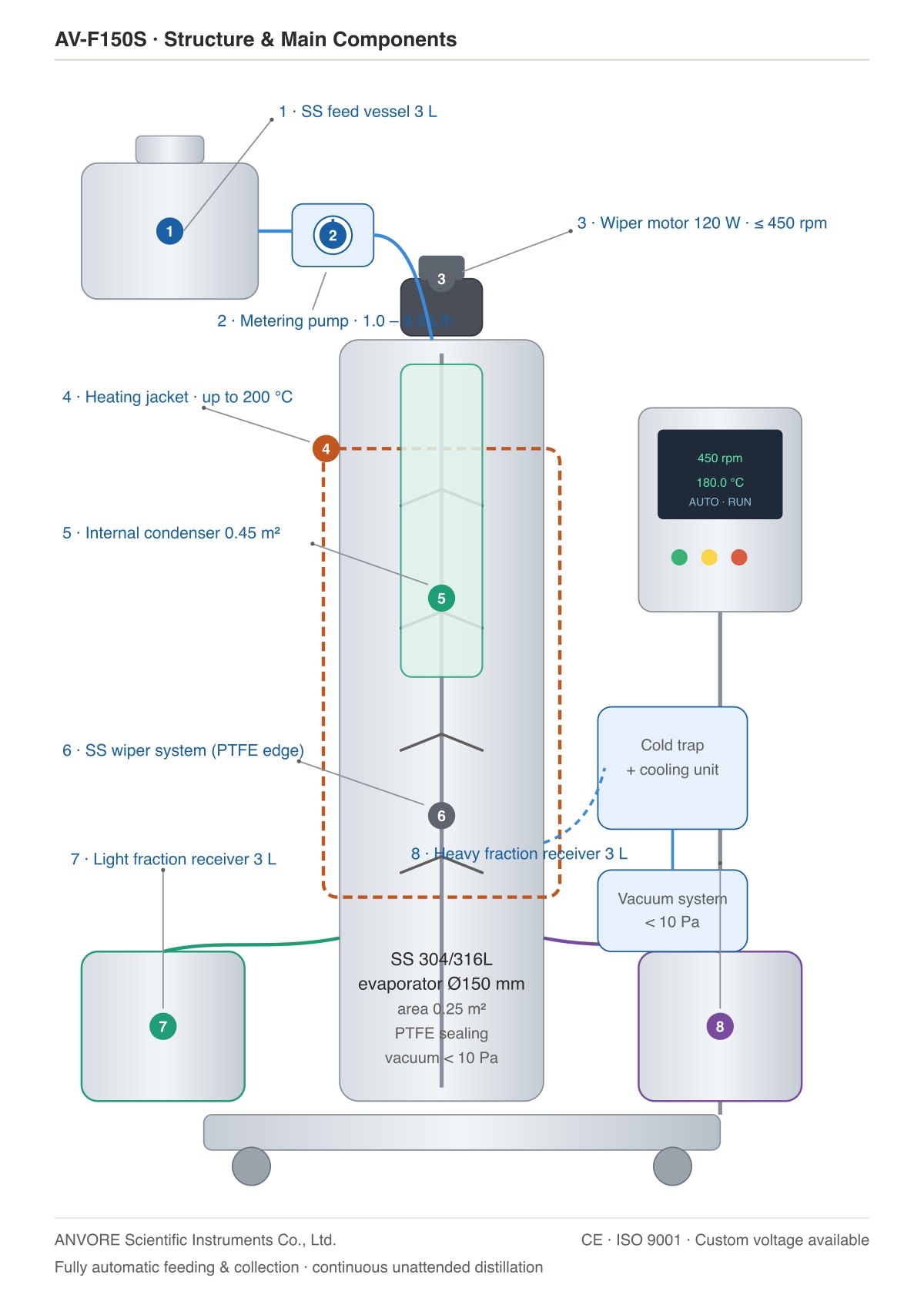

The complete system is mounted on a compact SS skid: feed vessel and metering pump on top, Ø 150 mm wiped-film evaporator with heating jacket at the center, internal condenser inside the body, light and heavy receivers below, plus cold trap, cooling device and vacuum system — all controlled from one PLC panel.

Working Principle

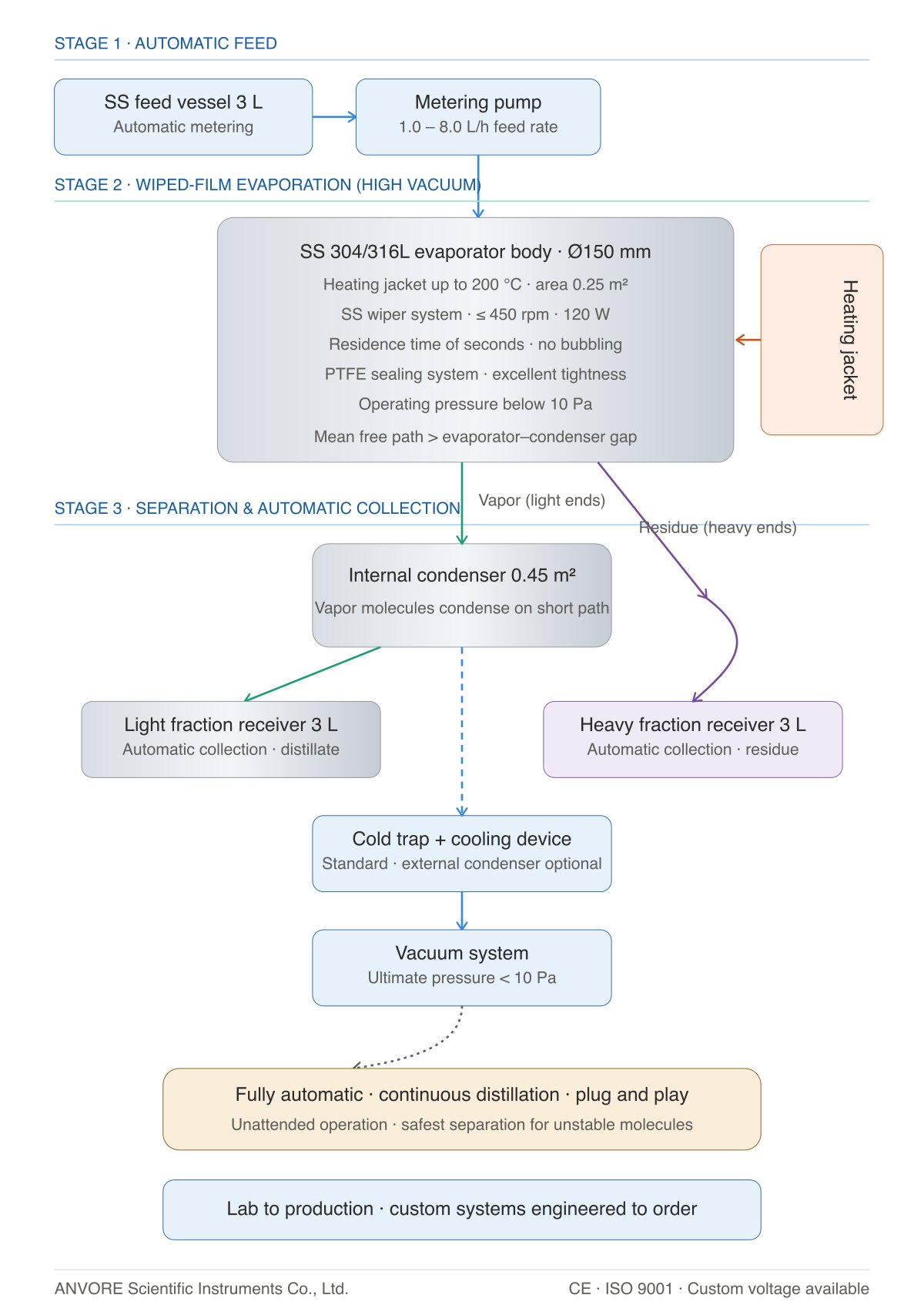

Feed is metered automatically (1.0 – 8.0 L/h) from a 3 L SS vessel onto the heated wall of the Ø 150 mm SS evaporator. Rotating SS wipers spread it into a thin film; under vacuum below 10 Pa, light molecules fly directly onto the internal condenser (mean free path > evaporator–condenser gap) while heavy molecules flow to a separate receiver — both 3 L receivers collect automatically, with no boiling and no thermal stress.

Technical Specifications

• Larger SS evaporator sizes and complete turn-key systems available on request — contact sales for tailored models.

Applications

• Vitamins & nutraceuticals — — natural vitamin E and heat-sensitive nutrient purification
• Herbal & botanical extraction — — traditional medicine and plant extract purification
• Specialty oils — — base oil and lubricant refining
• Solvent recovery — — clean, efficient industrial recycling
