Complete Short Path Vacuum Distillation Kit-10 L Bench-Top Molecular Distillation System

The AV-SP10L is a complete, ready-to-run 10 L glass short-path (molecular) distillation kit engineered for laboratory R&D and larger small-batch purification of heat-sensitive oils, extracts and fine chemicals. The kit is built around a borosilicate 3.3 short-path distillation head with a vacuum-jacketed vapor channel, a 10 L round-bottom flask heated and stirred by a 2100 W magnetic-stirring heating mantle, internal condenser and dry-ice cold traps. It ships complete with two 2XZ-2 rotary-vane vacuum pumps (ultimate vacuum 0.06 Pa) and an AVDC-1010 recirculating chiller (-10 to 95 °C), so the system is simply assembled and operated on any bench top. Because distillation takes place under deep vacuum (about 5 Pa), volatile components boil at far lower temperatures and travel only a very short distance before condensing - protecting thermally unstable compounds and leaving only a minimal residue.

Key Features & Advantages

• Complete turn-key kit — borosilicate glassware, rotary-vane vacuum pumps and recirculating chiller are all supplied; assemble, connect and run.
• Premium 3.3 borosilicate glass — high heat resistance, excellent chemical inertness and long service life.
• Short-path design with vacuum-jacketed vapor channel — minimum vapor travel reduces thermal degradation and improves the yield of valuable volatiles.
• Low-temperature distillation — at a working pressure of about 5 Pa, heat-sensitive compounds evaporate well below their normal boiling points.
• 10 L magnetic-stirring heating mantle (2100 W, 50–1800 rpm) — uniform heating combined with active stirring for even, stable evaporation.
• Practical 24/40 + 2 × 34/45 ground-glass joints — modular glassware that assembles and disassembles quickly for cleaning.
• 2 × 2 L receiving flasks (plus 500 mL flasks supplied) — collect multiple distillate fractions in one run.
• Dual dry-ice cold traps — protect the vacuum pumps from vapor attack and contamination.
• Two 2XZ-2 vacuum pumps — dependable pumping speed (2 L/s each) and an ultimate vacuum of 0.06 Pa for deep-vacuum runs.
• 40 W stirring motor — consistent torque across the full 50–1800 rpm speed range.
• Low residue — short-path operation leaves markedly less residue in the boiling flask than conventional distillation.

Structure Diagram

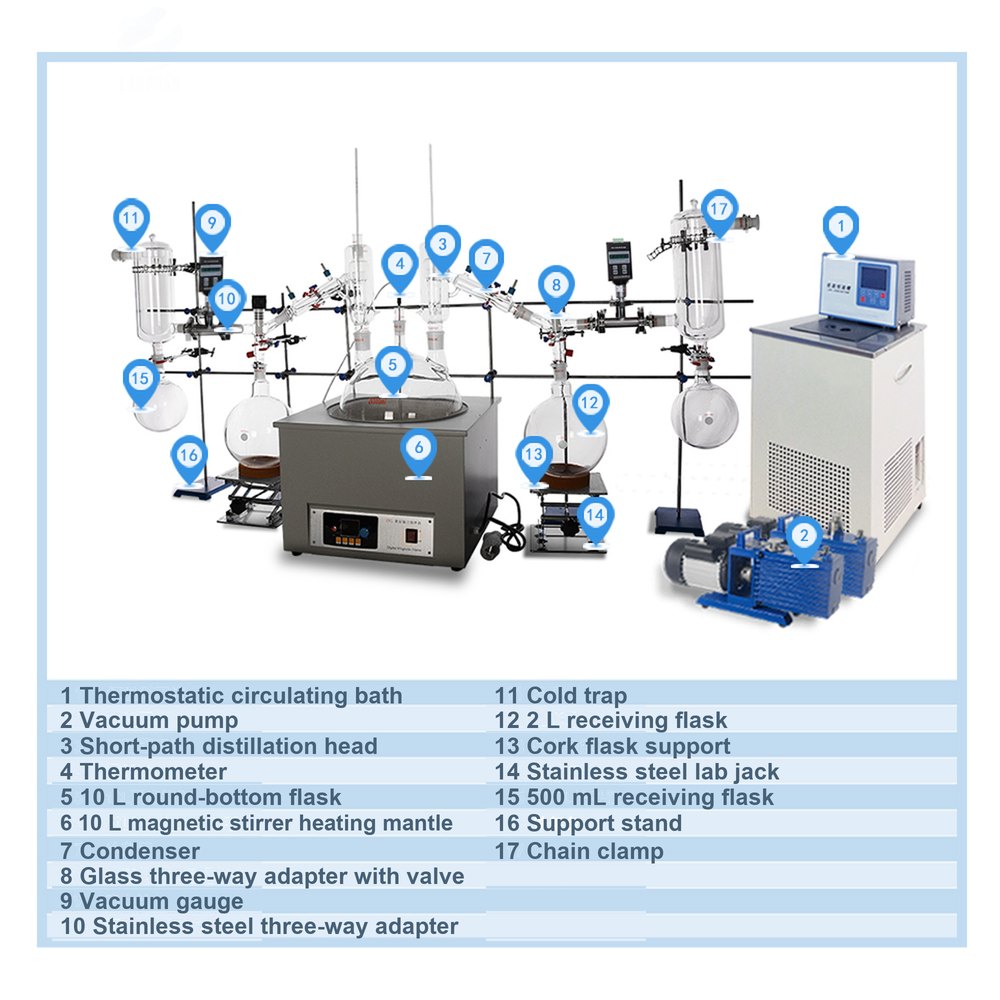

The 10 L round-bottom flask (5) sits in the 10 L magnetic-stirring heating mantle (6) below the short-path distillation head (3), which carries the thermometer (4) and the condenser (7). Distillate is routed through the glass three-way adapter with valve (8) and the stainless-steel three-way adapter (10) into the 2 L receiving flask (12) and the 500 mL receiving flask (15), which rest on cork flask supports (13) on the stainless-steel lab jacks (14), the support stand (16) and the chain clamp (17). The vacuum gauge (9) and the dry-ice cold trap (11) sit between the glass train and the vacuum pumps (2), while the thermostatic circulating bath (1) supplies coolant to the condensers.

Structure of the AV-SP10L kit

Working Principle

• Short-path distillation separates liquid mixtures by exploiting differences in boiling point under negative pressure. As the sample in the boiling flask is heated, volatile components evaporate and rise into the condenser, where they are chilled by coolant circulated from the recirculating chiller and collected as distillate; higher-boiling residues remain in the flask. Because the unit operates under deep vacuum, the effective boiling temperature is far lower than at standard pressure, and the vapor travels only a very short distance before condensing. This makes the technique ideal for compounds that are unstable at high temperatures, and the short, low-pressure path also means that far less material is left behind as residue after distillation.
• Figure 3. Working principle of the AV-SP10L glass short-path distillation kit

Technical Specifications

• Standard Package Contents

Applications

• The AV-SP10L bench-top short-path kit is the practical choice wherever gentle, efficient separation and clean fraction collection matter at lab and small-batch scale:
• Hemp, CBD & Cannabis Distillation — distillate polishing, THC remediation and recovery of terpene-rich fractions from crude oil.
• Essential Oil Fractionation — gentle separation of terpenes and oxygenated aroma compounds with minimal thermal damage.
• Botanical & Nutraceutical Extracts — purification and concentration of heat-sensitive active ingredients.
• Flavor & Fragrance Refining — polishing delicate aroma materials to premium, consistent grades.
• Solvent Recovery & Extract Concentration — fast, low-temperature removal of solvents from lab and small pilot batches.
• Pharmaceutical & Specialty Chemicals — small-batch purification of high-boiling-point and thermally unstable intermediates.
• Typical application scenarios of the AV-SP10L — hemp/CBD oil distillation, essential-oil fractionation, nutraceutical purification and solvent recovery
• For more information, custom configurations, or a quotation, please contact our sales team. We offer turn-key solutions including vacuum pumps, heating/cooling circulators, and full automation packages.
